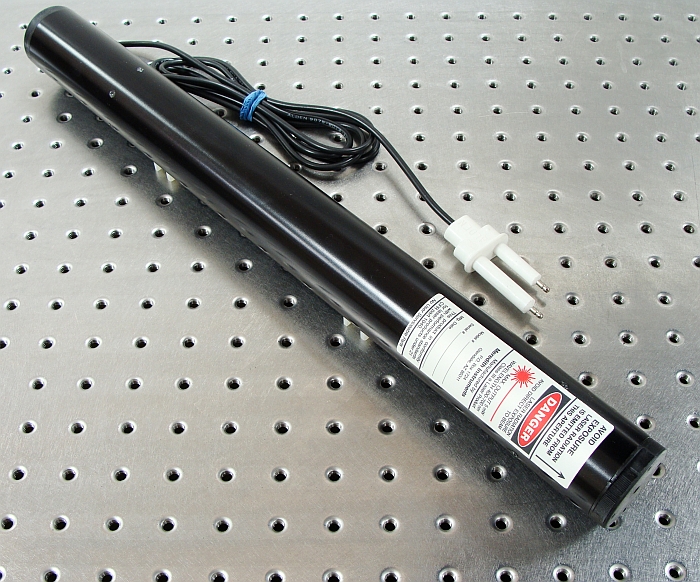

These are new, hard sealed laser heads for your OEM, replacement, or experimental needs. Heads have integral ballast resistor, mechanical shutter, and mounting holes for accessories. Other types of heads may be available. Please call for more information.
Output Power: 1.2 mW minimum 1.9 mW typical
Wavelength: 594.1nm Yellow
Polarization: Random (linear polarized may be available, Please email for availability)
Beam Diameter: 0.75mm
Beam Divergence: 0.92 mRads.
Aperture Mount: 4x 4-40 theaded holes 25.4 mm square spacing.
Operating Voltage: 2600 VDC.
Start Voltage: 10KV.
Operating Current Range: 6 to 7 mA, 6.5 mA Ideal.
Input Leads: Male Alden connector with 1.8 meter long cord.
Recommended Power Supply: LAB-S-28, DG-28.
Dimensions: 457 mm long x 44.5 mm diameter.
Warranty: Limited 30 days from date of purchase.
