These are good used hard sealed laser heads for your OEM, replacement, or experimental needs. Heads have integral ballast resistor. Other types of heads may be available. Please call for more information.
SPECIFICATIONS:

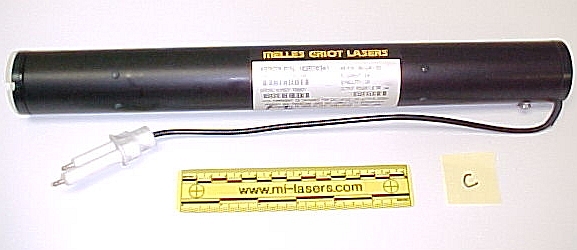

Mfg. & Part Number: Melles Griot, model 05-LHP-153, Xerox part number: 122E00341.
Output Power: 5.0 mW minimum 6.3 mW typical.
Wavelength: 632.8 nm RED
Polarization: Linear polarized 500:1
Mode: TEMoo
Beam Diameter: 1.0 mm
Beam Divergence: 1.1 mRads.
Operating Voltage: 2450 VDC.
Start Voltage: 10KV.
Operating Current Range: 6.0 to 7.0 mA, 6.5 mA Ideal.
Input Lead: Male Alden connector with a 305 mm long cord, and external case ground connector.
Recommended Power Supply: E-21, F-22, DG-22
Dimensions: 381 mm long x 44.5 mm diameter.
Warranty: Limited 30 days from date of purchase.
