These are new, old stock hard sealed laser tubes for your OEM, replacement, or experimental needs. Other types of tubes may be available. Please email us for more information.
SPECIFICATIONS:

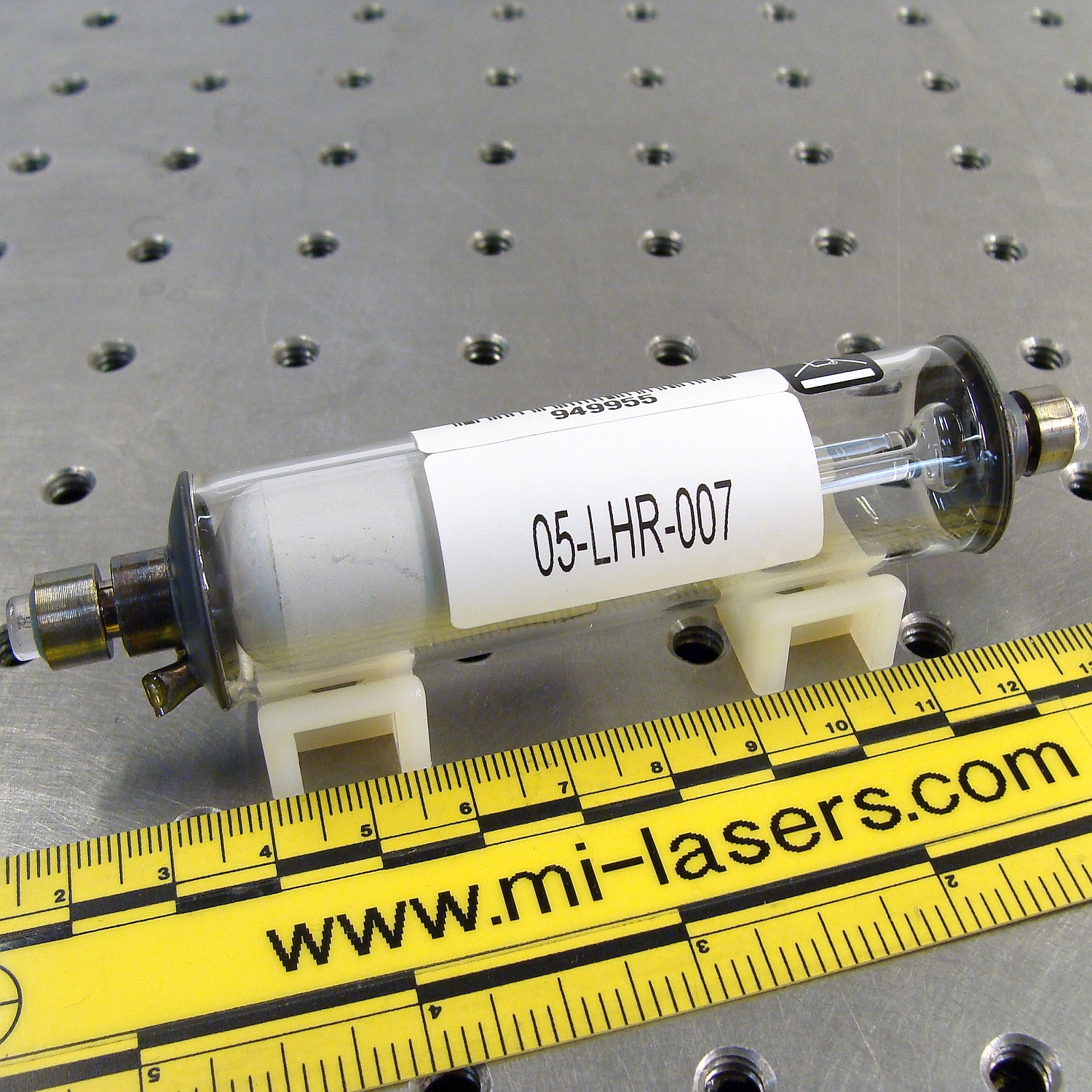

Manufacture / Part Number: Melles Griot, model 05-LHR-007
Output Power: 0.4 mW minimum
Wavelength: 632.8 nm RED
Polarization: Random
Mode: TEMoo
Beam Diameter: 0.34 mm
Beam Divergence: 2.40 mRads
Light Exit: Cathode end of tube.
Operating Voltage: 1220 VDC (with 68 K ballast)
Start Voltage: 8 KV
Operating Current: 2.7-4.0mA, 3.2mA Ideal
Recommended Ballast Resistor: 68 K Ohms, 2 Watt
(Add in series to the anode lead within 3″ of the tube.)
Recommended Power Supply: E-15, DG-15
Dimensions: 4.66″ (118 mm) long x 0.89″ (22.5 mm) diameter
Warranty: Limited 30 days from date of purchase.
