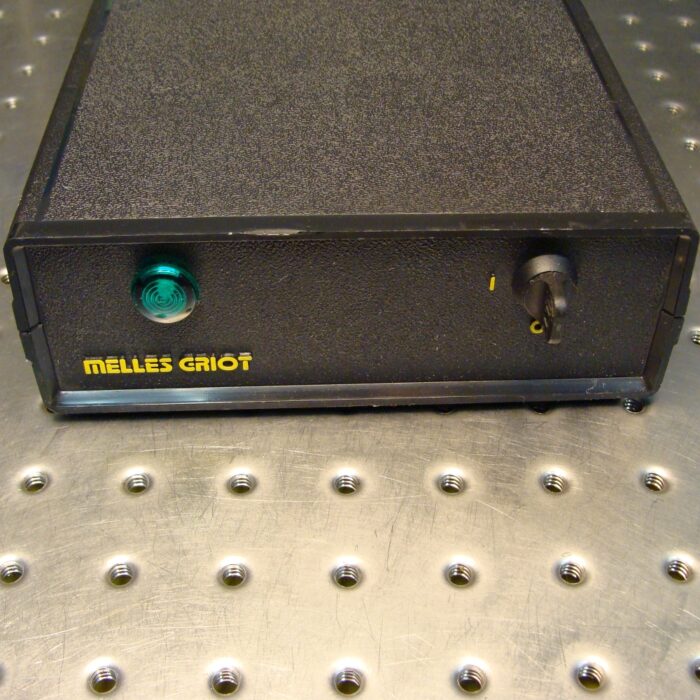

Melles Griot Lab style Helium Neon laser power supply model 05-LPL-944-080 or equivalent. These are used units, tested and in good condition. Power supplies include: 1 key, remote interlock connector, and a power cord for North America. Please call or email us for more information.
Equivalent model numbers:
Melles Griot: 25-LHP-928-249, 25-LHR-928-249, 25-LHP-928-230, 25-LHR-928-230
Coherent: 31-2488-000
Laser heads it will operate
Melles Griot models: 05- LHP-827, 05-LHR-827, 05-LHP-927, 05-LHR-927, 05-LHP-928, 05-LHR-928, 25-LHP-928-xxx, 25-LHR-928-xxx.
Coherent models: 31-2140, 31-2157
Specifications:
Input: 115 / 230 VAC 50-400 Hz.
Output: 4400-5300 VDC, 7-9mA* (factory preset at 8.0mA)
*Output current adjustable via internal trim potentiometer.*
** Please contact us if you would like us to preset the current to a specified amount.**
Start voltage: >15KV.
CDRH delay: 3 to 5 seconds. Defeatable by cutting internal violet wire loop.

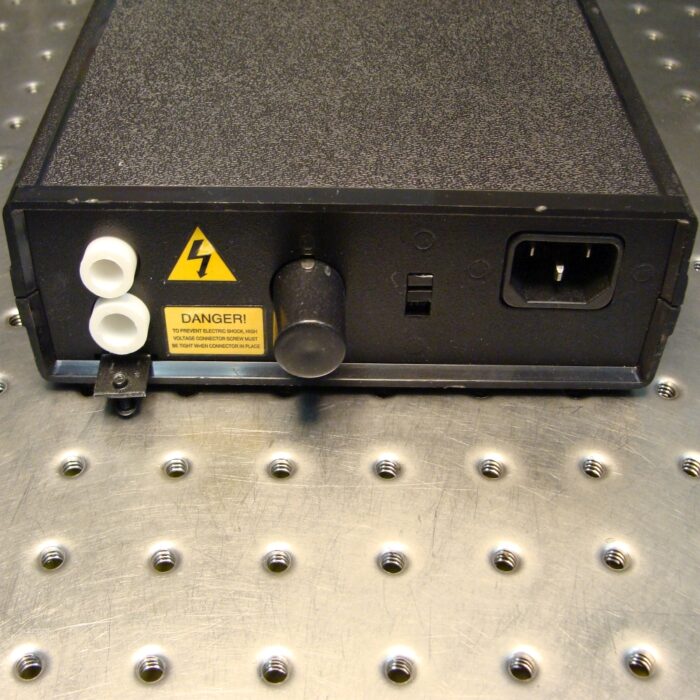

Output connector: Alden high voltage connector or equivalent.
Remote interlock: Jones plug type series circuit. Jumpered connector included.
Dimensions: 2.1 x 6.3 x 9.5 inches ( 54 x 161 x 242 mm).
Warranty: 30 days from date of purchase.
