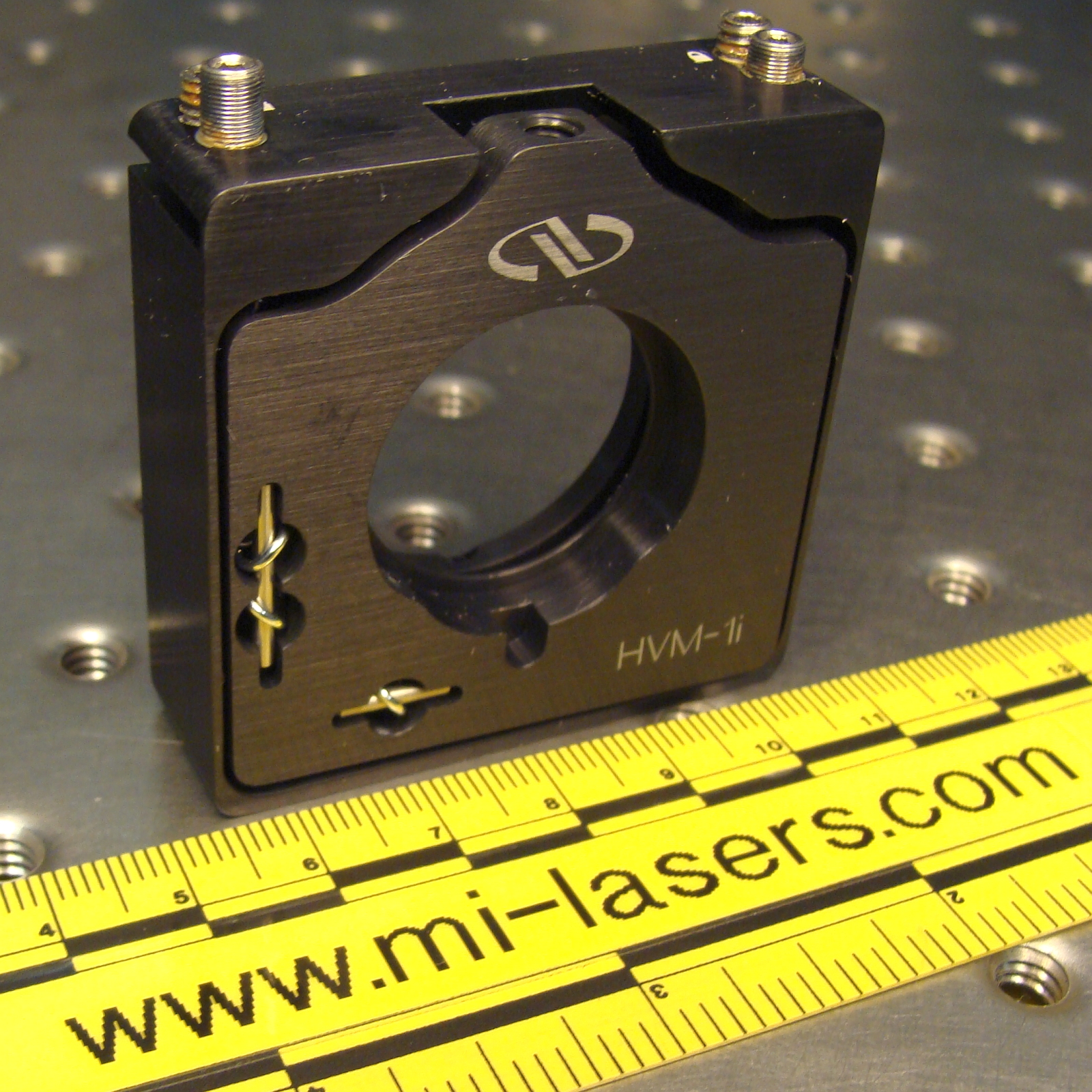

Newport model HVM-1i, 1 inch mirror / optics mount, industrial, vertical drive with 2 Locking Allen-keys
Used mounts in in good working condition. The adjusters were sealed with a dab of thread-lock. This is easily removed by backing out the lock and adjuster a little bit and cleaning the threads with a cotton applicator and acetone.
Specifications:
Mechanism: Kinematic
Optic Diameter: 25.4 mm
Adj Screw Thread: 80 TPI
Adjustments: θx, θy
Sensitivity: 2.5 arc sec
Angular Range: ±3.5°
Material: Anodized Aluminum
Drive Type: Allen-Key, locking
Mounting Thread: 8-32
Optical Axis Height: 25.4 mm
Special Features: Slim Profile
